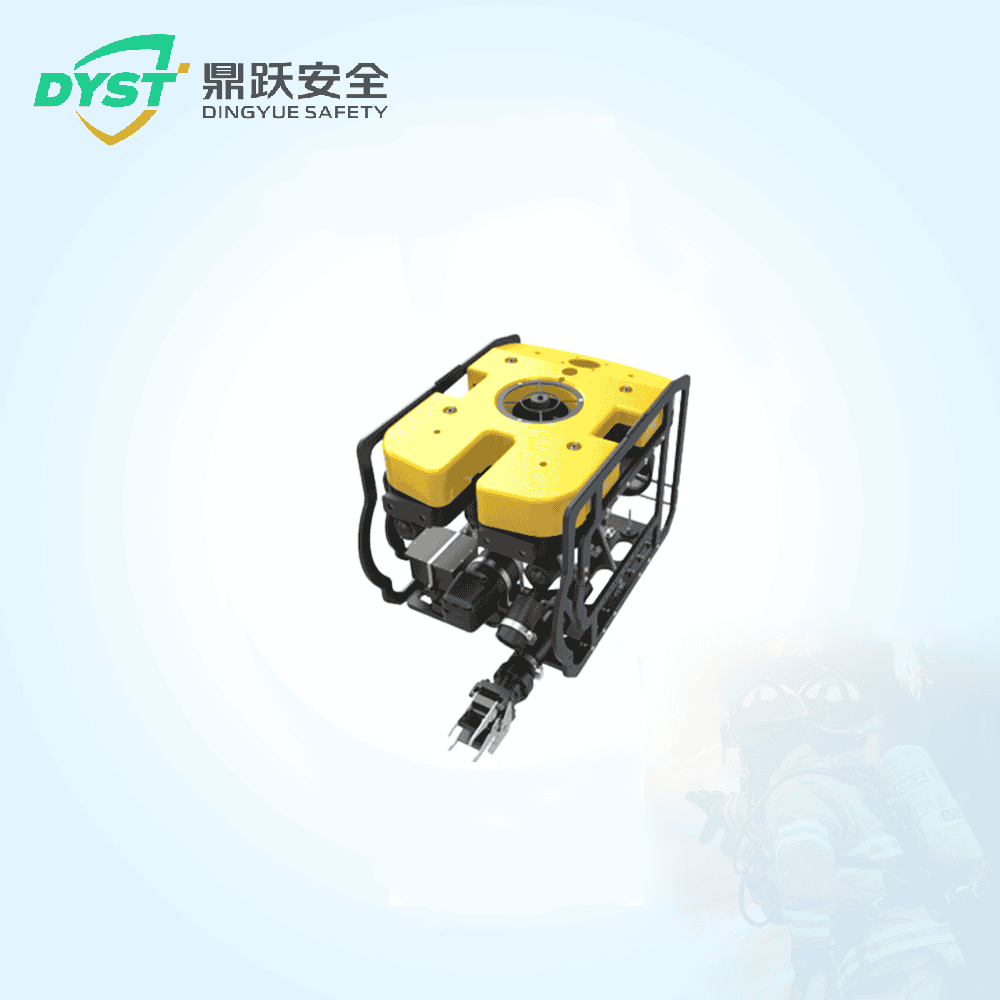

名称：Underwater robot
型号：
Underwater robots equipped with high-definition cameras, sonar systems, and robotic arms provide real-time imagery and precise positioning, enabling rescue personnel to swiftly locate targets and conduct salvage operations. These vehicles operate reliably in complex environments, adapting to deep water, strong currents, and low visibility conditions, significantly enhancing rescue efficiency while reducing risks to divers.
产品详情
I. Requirements Analysis
The underwater robot is designed to meet the demand for compact, portable underwater operations. It is suitable for scenarios requiring rapid deployment and operation in confined or hard-to-reach water areas, such as rescue, salvage, monitoring, and inspection.
II. Product Features
Compact and lightweight design: Features a frame structure and modular design for easy transport, deployment, and retrieval.
High-Performance Propulsion System: Equipped with 2 horizontal thrusters, 1 vertical thruster, and 1 lateral thruster, delivering powerful propulsion and precise thrust control.
High-definition imaging system: Incorporates a professional HD digital camera and LED lighting, delivering excellent imaging performance even in low-light or turbid water conditions.
Expansion Interfaces: Offers multiple high-speed and low-speed expansion ports for optional sensors and tools like auxiliary cameras, sonar, and robotic arms.
Pressure Resistance and Durability: The main frame is constructed from high-grade PP material, with buoyancy material capable of withstanding up to 3MPa hydrostatic pressure. The sealed housing utilizes 6061 hard aluminum alloy.
ROV Specifications: Dimensions 695*480*462mm, operating depth 300m, air weight 34kg, payload capacity 3kg, cruising speed >3 knots.
III. Application Scenarios
The underwater robot is suitable for diverse underwater operational environments, including shallow seas, lakes, and rivers. It can be utilized for search and rescue operations, salvage missions, and provides a swift, efficient, and safe method for diving rescue and salvage. Additionally, they can be deployed for underwater environmental monitoring, submerged structure inspection, and scientific research. Their portability and versatility enable effective operation in diverse complex underwater settings, particularly where rapid deployment and precise maneuvering are required.
IV. Technical Specifications
| Serial No. | Item Name | Technical Parameters |
| 1 | Dimensions | 695*480*462mm |
| 2 | Operating Depth | 300m |
| 3 | Weight in Air | 34Kg |
| 4 | Payload | 3kg |
| 5 | Cruising Speed | ＞3 knots |
| 6 | High-Performance Thrusters | Equipped with 2 horizontal thrusters, 1 vertical thruster, and 1 lateral thruster, delivering powerful propulsion and precise thrust control. |
| 7 | High-Definition Imaging System | Features a professional HD digital camera and LED lighting, delivering excellent imaging performance even in low-light or turbid water conditions. |
| 8 | Expansion Interfaces | Offers multiple high-speed and low-speed expansion interfaces, allowing optional sensors and tools such as auxiliary cameras, sonar, and manipulators to be added as needed. |
| 9 | Pressure Resistance and Durability | The main frame utilizes high-grade PP material, with buoyancy components capable of withstanding up to 3MPa static water pressure. The sealed housing is constructed from 6061 hard aluminum alloy. |
